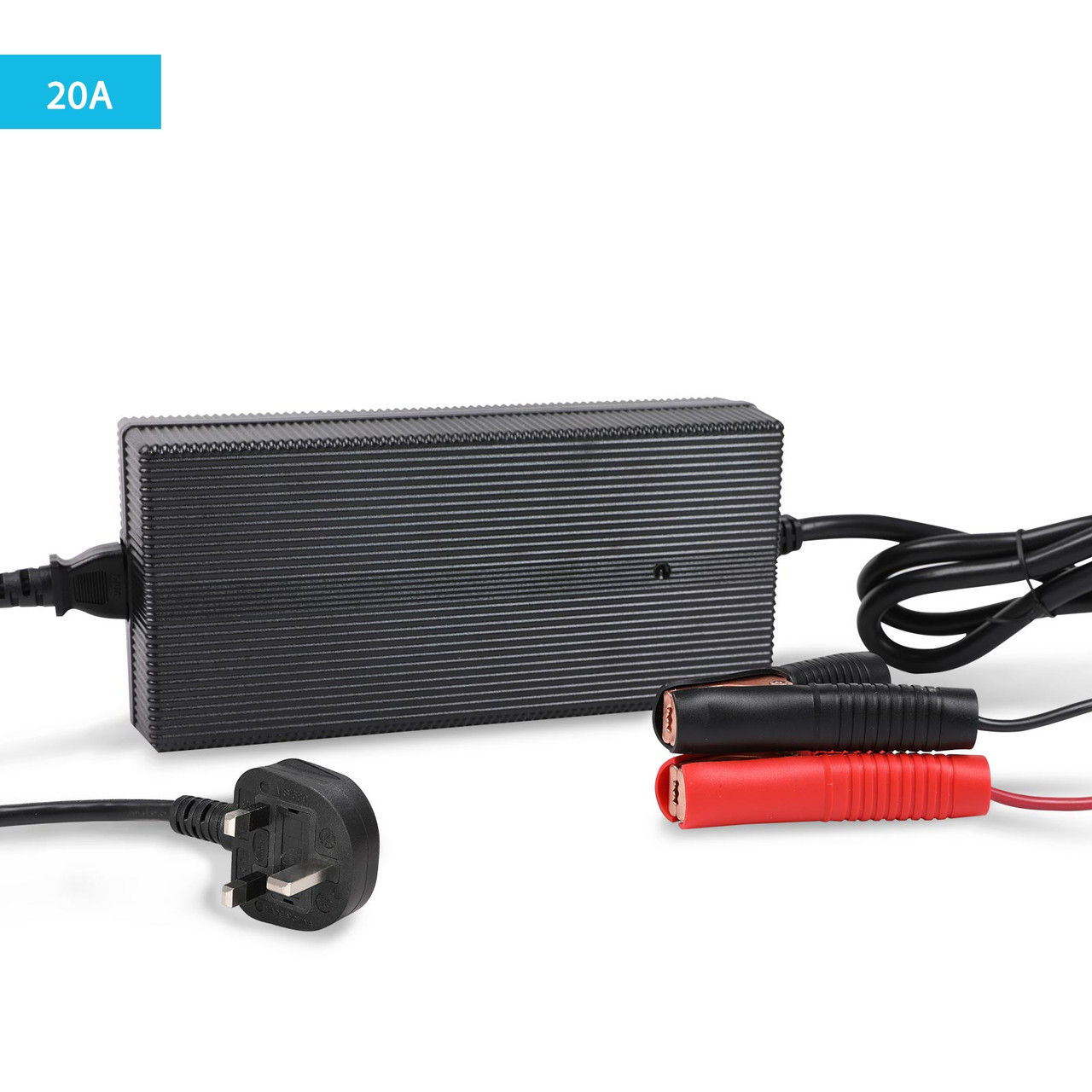

20A 240V AC to DC Lithium Iron Phosphate Battery Charger
SKU DS-CORE-BC-20240
DS-CORE-BC-20240
Price
£186.43
- Automatic LFP Battery Charging with a wide input voltage range
- Easy-to-understand LED indicator for charge status
- Simple Plug-and-Play Technology with Alligator Clips
- Compatible with Renogy 12.8V Lithium Batteries
- Electronic Protections and Lithium Activation
Quantity
Specifications
| Input Voltage: 100-240 VAC ~ 50/60Hz | Input Amps: 5A Max |
| Output Voltage: 14.6 VDC | Output Amps: 20A |
| Minimum Battery Voltage: 8V | Efficiency: 93% |
| Room Operating Temperature: -29°C~45°C / -20°F~113°F | Storage Temperature: -40°C~75°C/ -40°F ~ 167°F |
| Self-Consumption: 50mA | Current Protection: 250V 10A Fuse built in |
| Dimensions: 9.17 x 4.25 x 2.52in / 233 x 108 x64mm | Weight: 3.75 lbs / 1.7kgs |
| Cable Length: Approx 39in / 1000mm | Cable Gauge: 12 AWG |
| Protection: Overcurrent Protection (Fuse 250V 10A), Short Circuit Protection | Certifications: CE, ETL, FCC, TUV |
Warranty Information
| Accessories | 1-year material warranty |
