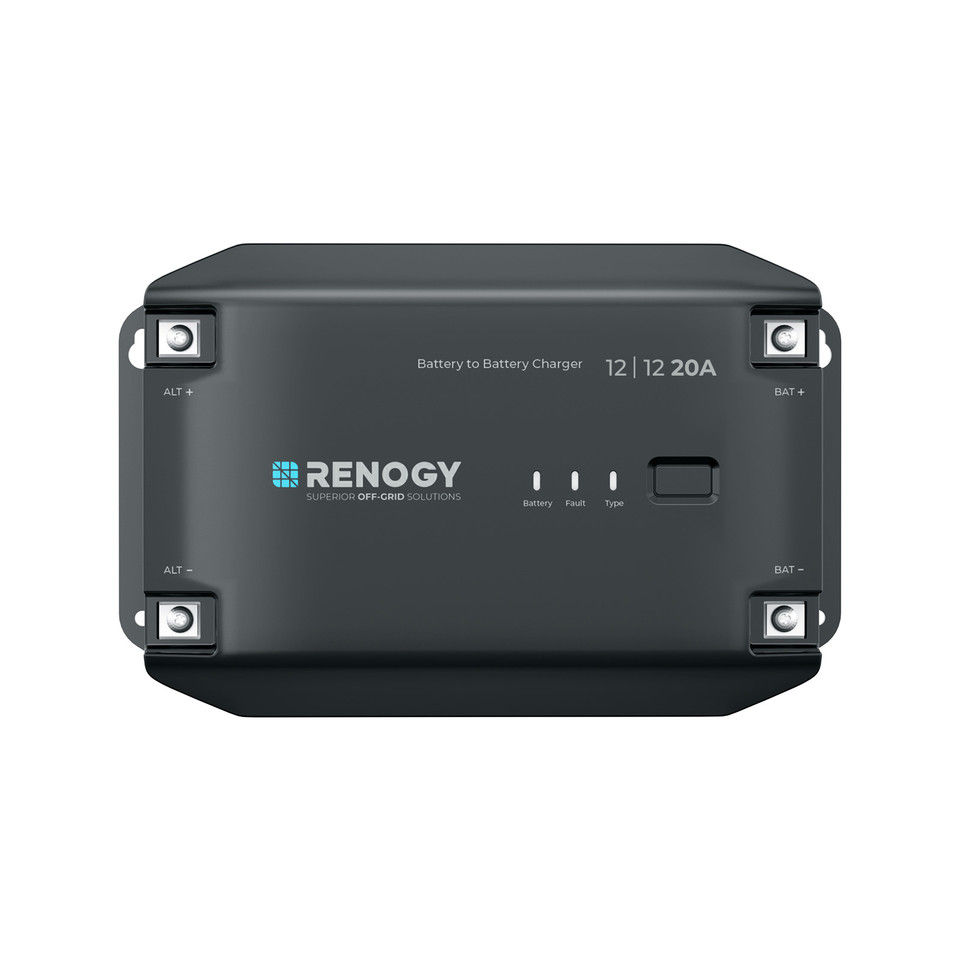

12V 20A DC to DC Battery Charger
SKU DS-CORE-BC-1220
DS-CORE-BC-1220
Price
£137.42
- Alternator running detection safeguards the starter battery.
- Simple and compact layout for easy installation.
- BT-2 Bluetooth enables remote monitoring, records 365-day data.
- Advanced protections ensure efficient & safe charging.
- Li Battery Activation On/Off offers customizable performance.
Quantity
Specification
- Terminal Range: 10AWG - 8AWG
- Grounding: Common Negative
- Communication Protocol: RS485 Communication
- Operating Temperature Range: -4℉ -122℉ /-25 ℃ - 60℃
- Storage Temperature Range: -4℉ -122℉ /-40 ℃ - 85℃
- Humidity: 0%-95%, No Condensation
- Maximum Operating Altitude: 3000m
- Enclosure Rating: 0%- 95% ,no condensation
- Dimensions: 9.31 in (236.5 mm)x5.17 in (131.5 mm)x2.36 in(60.5 mm)
- Weight: 3.3 lb / 1.5 kg
- Certification: CE/RoHS/FCC
- Protection: Reverse Polarity Protection/Overvoltage Protection/Over Discharge Protection/Overcurrent Protection/Over Temperature Protection
ELECTRICAL DATA
- System Voltage: 12V-12V
- Alternator Input Voltage: "Traditional Alternator: 13.2-16.0VDC; Smart Alternator (Euro 6): 12-16.0VDC"
- Maximum Output Current Rating: 20A
- Output Power: 292W
- Battery Types: AGM, Gel, Flooded, Lithium-iron Phosphate，User
- Input Fuse Rating: 40A
- Output Fuse Rating: 30A
- Charging Efficiency: 94%
- Temperature Compensation: -3mV / ℃ / 2V (Non-Lithium);0mV / ℃ / 2V; no compensation (Lithium);＜15mA
- Idle Power Consumption: ＜15mA
WARRANTY INFORMATION
- Accessories: 2-year material warranty
Download
